Monitor
AG254FG
24,5" gaming monitor met 360Hz verversingsfrequentie,1ms GtG responstijd en G-sync
Onovertroffen
De AG254FG is ons model dat de Red Dot Design Award toegekend heeft gekregen en is geschikt voor iedereen die een meeslepende ervaring wil. Het is voorzien van High Dynamic Range 400 (HDR), G-Sync, 360Hz verversingsfrequentie en aanpasbare RGB-verlichting aan de voor- en achterzijde, Light FX.

1ms pixelresponstijd GTG - Grey-to-Grey

Screen Shield

IPS-paneel

Minimale afleiding door het frame voor het ultieme gevechtsstation

Vesa Certified DisplayHDR™ 400

Logo projectie

Quick Switch

Ingebouwde speakers

RGB LIGHT FX

Lage input lag

Perfect voor gaming met een console

6 games-modi

AOC Game Color en Shadow control

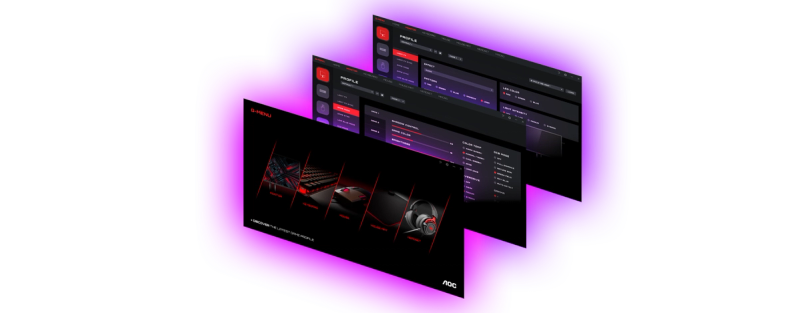

GMENU
- Schermafmeting (inch)
24.5
- Resolutie paneel
1920x1080
- Paneeltype
IPS
- Responstijd GtG
1ms
- Sync -technologie (VRR)
G-SYNC + NVIDIA Reflex Analyzer
Specifications
- Type bezel (voorkant)3-zijdig randloos
- Light FX (RGB)
- LED logo projector
- Afneembare standaard
- Luidsprekers
- Vermogen luidsprekers5 W x 2 + DTS
- Ingebouwde microfoon
- Kensington-slot
- MonitorWebcam2MP
- MaterialSteel Alloy
- Kleur bezel (voorkant)Zwart
- Afwerking bezel (achterkant)Mat
- Kleur van de behuizing (achterkant)Zwart
- Afwerking van de behuizing (achterkant)Mat
- Vesa-wandmontage100x100
- Digitale HDCP (HDMI-versie)HDCP 2.2
- USB-C connectiviteitUSB-C (DP Alt mode) x 1
- USB Display Link
- USB-hub
- USB-poorten - downstream4
- USB-poort snelladen
- Audio-uitgangUitgang hoofdtelefoon (3, 5 mm)
- Audio-ingang
- Microphone in
- Displaylink in
- DisplayPort output1x DP-Out 1.2
- DP HDCP versionHDCP 2.2
- DVI HDCP versionHDCP 1.4
- mini USB (for external keypad)No
- MST / Daisy chain (DP out or TBT out)
- Thunderbolt in0x
- Thunderbolt out1x TBT 4
- PD for USB C/TBTUSB C1 : USB PD version 3.0, typical 96W (5V/3A, 7V/3A, 9V/3A, 10V/3A, 12V/3A, 15V/3A, 20V/4.8A), USB C2 : PD=15W, 5V/1.5A 5V/3A
- USB Type Upstream1 x USB3.2 type C Gen 1, 5 Gbit/s
- Microphone out
- D-SUB (VGA)2x
- DVI2x DVI-D
- RJ451x 10M/100M/1G
- USB Hub Down Stream4 x USB3.2 type A Gen1, 5Gbps (BC1.2x1 yellow), 1 USB 3.2 type C Gen1, 5Gbps
- Audio Out/headphone out(3.5mm)/ microphone in
- HDMIHDMI 2.0 x 2
- DisplayPortDisplayPort 1.4 x 1
- USB-hubsnelheidUSB 3.2 (4 USB downstream ports)
- Schermafmeting (inch)24.5
- Schermafmeting (cm)62.23
- Plat / GebogenPlat
- Krommingstraal1000R
- Hardheid display3H
- Behandeling paneelAnti-reflectie (AG - Antiglare)
- Pixel-pitch (mm)55.0
- Pixels per Inch5.0
- Resolutie paneel1920x1080
- Aspect-verhouding16:9
- PaneeltypeIPS
- Type achtergrondverlichtingWLED
- Max Verversfrequentie360 Hz
- Responstijd GtG1ms
- Responstijd GtG min0.03 ms
- Responstijd MPRT0,3 ms
- Statische contrastverhouding1000:1
- Dynamische contrastverhouding100M:1
- Kijkhoek (CR10)178/178
- Displaykleuren16,7 miljoen
- Brightness in nits400 cd/m2
- Lokale dimzonesLocal Dimming 32 zone
- Naam van resolutieFHD
- Kantelen-3/21
- Hoogte-instelling (mm)130mm
- Zwenken-30/30
- DraaienYes
- EAN4038986149945
- UPC685417727483
- Garantieperiode3 jaar
- OSD-talenEngels, Frans, Duits, Tsjechisch, Russisch, Kroatisch, Chinees (traditioneel), Chinese (vereenvoudigd), Spaans, Portugees, Italiaans, Nederlands, Zweeds, Fins, Pools, Japans, Oekraïens, Turks, Koreaans
- VoedingExtern
- Voedingsbron100 - 240V 50/60Hz
- Energieverbruik aan (testmethode volgens Energy Star) in watt45.0
- Energieverbruik aan (standaard) in watt38.0
- Energieverbruik stand-by in watt0.5
- Energieverbruik uit in watt0.5
- EnergieklasseG
- Productafmetingen incl. basis (BxHxD) mm398.9~528.9(H) × 556.6(W) × 308.2 (D)
- Productafmetingen excl. basis (BxHxD) mm335 (H) × 556.6(W) × 72.4 (D)
- Afmetingen verpakking (BxHxD) mm652 (H) x 690(W) x 225(D)
- Brutogewicht incl. verpakking (kg)11.5
- Brutogewicht excl. verpakking (kg)6.36
- Gross weight incl. package (in kg) (CN)11.5
- Product zonder standaard (kg)8.0
- CB
- CE
- TUV-Bauart-Mark
- TUV-GS-Mark
- Intertek S Mark (SEMKO)
- ISO 9241-307
- TUV Ergo
- EAC
- FCC
- Microsoft WHQL
- Pixel-beleidISO 9241-307
- CE LVD
- UKCA RED
- Energy StarEnergy star 7
- EPEATGoud
- ECMA Eco-verklaring
- Product carbon footprint/koolstofvoetafdruk (PCF)
- AEEA
- Voldoet aan REACH
- Voldoet aan RoHS
- HF
- PVC/BFR-vrije behuizing
- Kwikvrij
- Herbruikbaar verpakkingsmateriaal100% recyclebaar
- Hergebruikt verpakkingsmateriaal100% hergebruikt karton
- Van de consument afkomstig hergebruikt kunststof25% B2B
- EPA (latest version)
- Halogen free
- CEC
- Carton materialEPE
- Carton material printColor Print
- Sync -technologie (VRR)G-SYNC + NVIDIA Reflex Analyzer
- NVIDIA G-SYNC™NVIDIA G-SYNC Compatible
- AMD FreeSync™AMD FreeSync
- NVIDIA Reflex-analysator
- Sync-bereik1-360
- Digitale signaalfrequentie - verticaal1~360Hz (DP) / 48~240Hz (HDMI)
- Digitale signaalfrequentie - horizontaal30Khz~400Khz (DP) / 30Khz~280Khz (HDMI)
- HDR (High Dynamic Range)VESA Certified DisplayHDR™ 400
- Blue Light -technologieLow Blue Light
- Kleurruimte (sRGB) CIE 1931 %110.0
- Kleurruimte (sRGB) CIE 1976 %125.0
- Kleurruimte (DCI-P3) CIE 1931 %100.0
- Kleurruimte (DCI-P3) CIE 1976 %86.0
- Kleurruimte (Adobe RGB) CIE 1931 %110.0
- Kleurruimte (Adobe RGB) CIE 1976 %78.0
- Kleurruimte (NTSC) CIE 1976 %94.0
- Flicker-FreeFlicker Free
- KVM2x USB3.2 Gen 1 type C
- Multiview (PbP, PiP)PiP, PiP+PbP
- HDMI-kabel1.8
- Micro HDMI naar HDMI1.2
- D-SUB (VGA)-kabel1.5
- DVI-kabel1.8
- Displayport-kabel1.8
- Mini-DP-kabel1.2
- Audiokabel1.5
- USB-B-kabel - upstream1.5
- Kabel USB‑C naar C.1.5
- Kabel USB‑C naar C/A.1.5
- RS232
- Stroomkabel
- Stroomkabel C51.5
- Stroomkabel C71.5
- Stroomkabel C131.5
- Stroomkabel C151.5
- Stroomadapter
- OverigeKap voor over de monitor, OSD-pad
